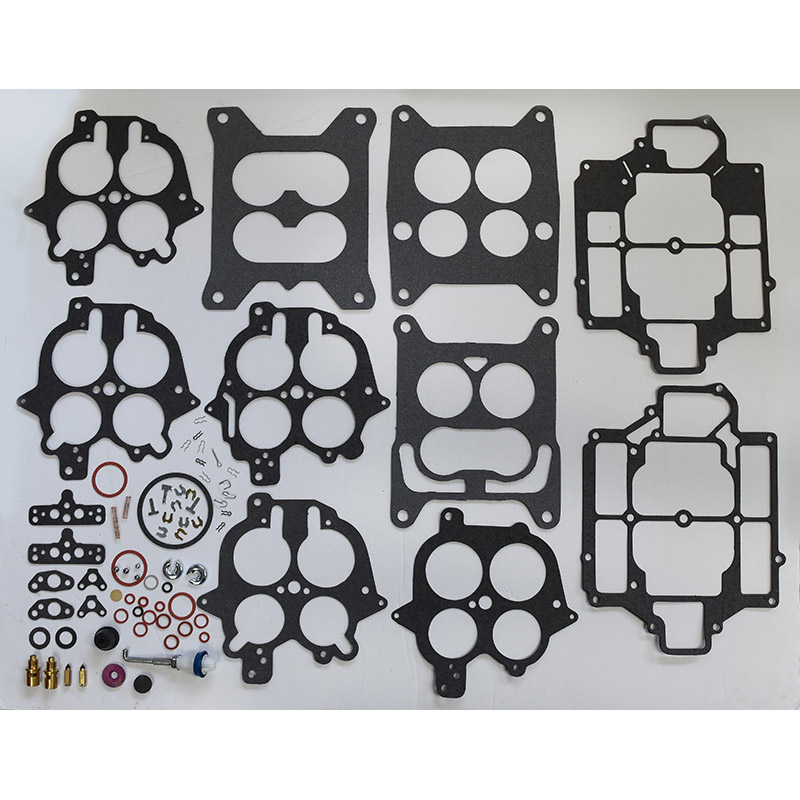

CK34 Carburetor Kit
Made in USA. Ethanol compatible.
Includes the complete Viton pump assembly. A complete pump assembly (not just the cup) is important if the pump is damaged or has been replaced with a non-standard aftermarket pump. In those cases, replacing the complete pump - contained in this kit - is a must.
Includes printed instructions.
Made in USA. Ethanol compatible.
Includes the complete Viton pump assembly. A complete pump assembly (not just the cup) is important if the pump is damaged or has been replaced with a non-standard aftermarket pump. In those cases, replacing the complete pump - contained in this kit - is a must.
Includes printed instructions.
Also available
Parts listed here may not fit all applications. Check carburetor number listings before ordering parts.
Applications
F79 fits applications as shown below. Power valve 56-02 fits all applications covered by CK34.
| Cadillac | |||
| 1957 | Early | 7010100 | F79 |
| Early, w/ air | 7010101 | F79 | |
| 1957-1966 | All | 7012000, 7012001, 7012011 | F79 |
| 1958 | Early | 7012010 | F79 |
| Early, w/ air | 7012011 | F79 | |
| Late, w/air | 7012811 | F79 | |
| Late | 7012910 | F79 | |
| 1959-1960 | 7013031 | F79 | |
| 1961-1962 | 7019030, 7019031 | F79 | |
| 1963 | 7023030, 7023031 | F79 | |
| 1964 | 7024030, 7024031 | F79 | |
| 1965 | 7025030 | F79 | |
| w /air | 7025031 | F79 | |
| 1966 | 7026030 | ||
| w/air | 7026031 | ||
Oldsmobile |
|||
| 1958 | A/T | 7012400 | F79 |
| S/T | 7012401 | F79 | |
| 1959- early 1960 | 7013050 | F79 | |
| w/air | 7013150 | F79 | |
| 1960 | Late | 7013950 | F79 |
| Late, w/air | 7013952 | F79 | |
| 1961 | 7019050 | F79 | |
| Super 88, 98 A/T S/T | 7020950 | ||
| 1962 | SUPER 88, 98 A/T S/T W/AIR | 7020955 | F79 |
| 1963 | 88, 98 394†A/T S/T | 7023050 | F79 |
| 88, 98 W/AIR 394†A/T S/T | 7023051 | F79 | |
| 1964 | SUPER 88, 98 A/T S/T | 7024050 | F79 |
| SUPER 88, 98 A/T S/T W/AIR | 7024051 | F79 | |
| W/AC C.C.V., California | 7024153 | F79 | |
| SUPER 88, 98 A/T S/T C.C.V. | 7024154 | F79 | |
| 1965 | 98, STARFIRE 425†| 7025050 | F79 |
| 98, STARFIRE 425†EARLY W/AC | 7025051 | F79 | |
| F85 400†A/T S/T | 7025150 | F79 | |
| F85 400†W/AC A/T S/T | 7025151 | F79 | |
| 425 CU. IN. LATE | 7025255 | F79 | |
Pontiac |
|||
| 1957 | S/T | 7009829,7009830 | F79 |
| Late A/T | 7011701 | F79 | |

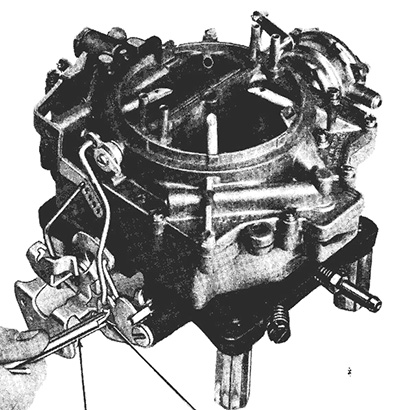

Typical carburetor serviced with this kit
Carburetor Numbers
7009829
7009830
7010100
7010101
7011701
7012000
7012001
7012010
7012011
7012400
7012401
7012811
7012910
7013030
7013031
7013050
7013150
7013950
7013952
7019030
7019031
7019050
7019054
7020950
7020955
7023030
7023031
7023050
7023051
7024030
7024031
7024050
7024051
7024153
7024154
7025030
7025031
7025050
7025051
7025150
7025151
7025255
7026030
7026031
