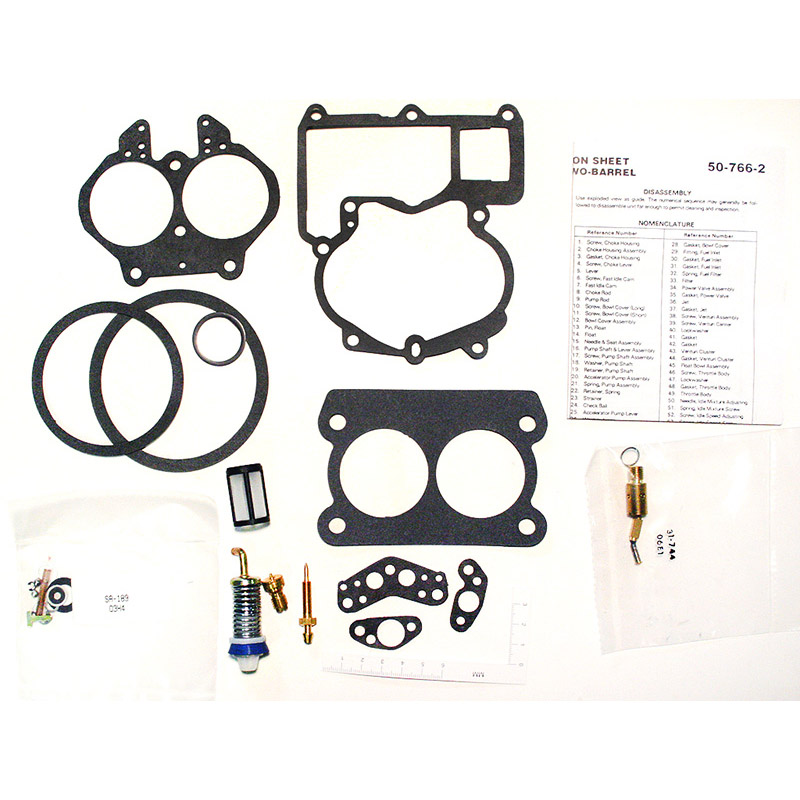

CK816 Carburetor Kit
Made in USA. Ethanol compatible.
Note that the Mercarb looks like a rochester 2-jet (2g) carburetor, but is actually a completely different unit. Only the float is common to the two carbs. The Mercarb can be distinguished by the lack of 'rochester' or 'two-jet' markings, which all 2g carbs have.
Includes power jet 850424, accelerator pump 3302-96551
Includes printed instructions.
Made in USA. Ethanol compatible.
Note that the Mercarb looks like a rochester 2-jet (2g) carburetor, but is actually a completely different unit. Only the float is common to the two carbs. The Mercarb can be distinguished by the lack of 'rochester' or 'two-jet' markings, which all 2g carbs have.
Includes power jet 850424, accelerator pump 3302-96551
Includes printed instructions.
Also available
Parts listed here may not fit all applications. Check carburetor number listings before ordering parts.
Applications
| Four Cylinder | ||
| Engine | Years | Carburetor Number |
| 120 L4 / 153 | 1986 | 1389-9562A1 |
| 2.5L L4 / 153 | 1987-89 | 3310-806077A2 |
| 140 L4 / 181 3.0L | 1986 | 1389-9562A1 |
| 3.0L L4 / 181 | 1987-89 | 3310-806077A2 |
| 3.0L L4 / 181 | 1990 | 1389-815396A2 |
| 3.0L L4 / 181 | 1991-93 | 1389-9562A1 |
| 3.0L L4 / 181 | 1993-94 | 1389-815396A2 |
| 3.0L L4 / 181 | 1998 - Up | 3310-807504A1 |
| 3.0LX L4 / 181 | 1990-97 | 1389-815397A2 |
| 3.0LX L4 / 181 | 1990-97 | 3310-805924A2 |
| 165 L4 / 224 | 1987 | 1389-9564A1 |
| 170 L4 / 224 | 1985-89 | 1389-9564A1 |
| 3.7L L4 / 224 | 1988-89 | 1389-9564A1 |
| Six Cylinder | ||
| Engine | Years | Carburetor Number |
| 175 V-6 / 262 | 1987 | 3304-9565A1 |
| 4.3L V-6 / 262 | 1988-92 | 3304-9565A1 |
| 4.3L V-6 / 262 | 1992-93 | 3304-9565A7 |
| 4.3L V-6 / 262 | 1993-95 | 3310-806080A2 |
| 4.3L V-6 / 262 | 1993-95 | 3310-806972A1 |
| 4.3L V-6 / 262 | 1996-02 | 3310-807764A1 |
| 4.3L V-6 / 262 | 2002-04 | 3310-807764A1 |
| 4.3L V-6 / 262 | 2002-04 | 3310-864941A1 |
| Eight Cylinder | ||
| Engine | Years | Carburetor Number |
| 200 V-8 / 305 | 1986-87 | 1389-9563A1 |
| 200 V-8 / 305 | 1987 | 1389-9563A1 |
| 5.0L V-8 / 305 | 1988-95 | 1389-9670A2 |
| 5.0L (Gen +) V-8 / 305 | 1998-02 | 3310-861448A1 |
| 5.0L (Gen +) V-8 / 305 | 2002-04 | 3310-861448A1 |
| 5.0L (Gen +) V-8 / 305 | 2002-04 | 3310-864942A01 |
| 5.7L (2bbl) V-8 / 350 | 1996-97 | 3310-807312A1 |
| 5.7L (Gen +) (2bbl) V-8 / 350 | 1998-2002 | 3310-861245A1 |
| 5.7L (Gen +) (2bbl) V-8 / 350 | 2002-04 | 3310-861245A1 |
| 5.7L (Gen +) (2bbl) V-8 / 350 | 2002-04 | 3310-864943A01 |
| 5.7L MIE (2bbl) V-8 / 350 | 1998-2002 | 3310-861245A1 |
| 5.7L MIE (2bbl) V-8 / 350 | 2002-04 | 3310-861245A1 |
| 5.7L MIE (2bbl) V-8 / 350 | 2002-04 | 3310-864943A01 |
| 5.7L Ski (2bbl) V-8 / 350 | 1996-97 | 3310-807312A1 |
| 5.7L Ski (Gen +) (2bbl) V-8 / 350 | 1998-2001 | 3310-861245A1 |
| 5.7L Ski (Gen +) (2bbl) V-8 / 350 | 2002-04 | 3310-861245A1 |
| 5.7L Ski (Gen +) (2bbl) V-8 / 350 | 2002-04 | 3310-864943A01 |
Typical carburetor serviced with this kit
Carburetor Numbers
1389-9562A1
3310-806077A2
1389-9562A1
3310-806077A2
1389-815396A2
1389-9562A1
1389-815396A2
3310-807504A1
1389-815397A2
3310-805924A2
1389-9564A1
1389-9564A1
1389-9564A1
3304-9565A1
3304-9565A1
3304-9565A7
3310-806080A2
3310-806972A1
3310-807764A1
3310-807764A1
3310-864941A1
1389-9563A1
1389-9563A1
1389-9670A2
3310-861448A1
3310-861448A1
3310-864942A01
3310-807312A1
3310-861245A1
3310-861245A1
3310-864943A01
3310-861245A1
3310-861245A1
3310-864943A01
3310-807312A1
3310-861245A1
3310-861245A1
3310-864943A01
